Hydraulic Pressure Machine Forming High Precision High Level

Tank Diameter : 500-2000mm

Control System : PLC control

Production Speed : 10-15 tanks per hour

Welding Method : TIG welding

Cooling Method : Water cooling

Tank Length : 1000-3000mm

Insulation Material : Polyurethane foam

Capacity : 1000 liters

Heating Method : Electric heating

Model : SCWT-1000

Material : Stainless steel

Power Supply : 380V/50Hz

MOQ : 1pc

Color : Custom

Condition : New

Warranty : 1 Year

Automatic Grade : Automatic

Voltage : Customized

Product Name : Solar Collector Water Tank Production Line

Contact Now

The four-column press is equipped with three speeds for no-load fast, slow die and workpiece deep drawing. It boasts high work efficiency, low energy consumption, convenient operation, stable performance and other advantages. It finds extensive applications in metal pressing, forming, bending as well as flanging correction and other processes. The size of the worktable and the tonnage of hydraulic cylinder can be customized according to customer requirements.

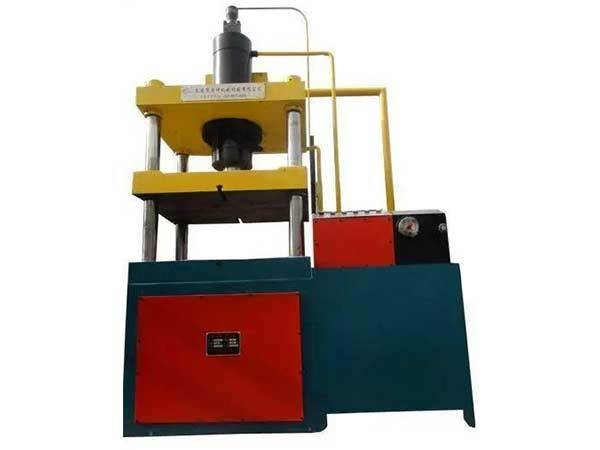

Four-column press (10T-500T)
The four-column press is equipped with three speeds for no-load fast, slow die and workpiece deep drawing. It boasts high work efficiency, low energy consumption, convenient operation, stable performance and other advantages. It finds extensive applications in metal pressing, forming, bending as well as flanging correction and other processes. The size of the worktable and the tonnage of hydraulic cylinder can be customized according to customer requirements.

Product parameters

Device name	Four-column press
Device model	LPR01
Nominal pressure ( KN )	8000
Nominal pressure stroke ( mm )	13
Slider stroke ( mm )	800
Maximum die height ( mm )	1400
Die height adjustment amount ( mm )	600
Slider Bottom Surface Dimensions ( mm )	4600*2500
Work surface size ( mm )	4600*2500
Upper slider pad thickness ( mm )	120+120
Trips ( spm )	16 in a row
Air Cushion Force ( KN )	1500
Air cushion force stroke ( mm )	0250 (adjustable)
Maximum load-bearing capacity of the worktable (tons)	40
Press continuous stroke work ( ton * m )	27
Balance capacity (excluding pad weight) (tons)	20
Number of fine-tuning ( spm )	0.7 ~ 51.5
